Straight Abutment

Straight titanium abutments are the most popular abutments on the dental market. A straight abutment is excellent for all sorts of restorations at all phases of treatment. It delivers amazing aesthetics and predictable results with outstanding stability for the crowns and bridges. A straight abutment is usually used for a single crown restoration but can be used for a full bridge if needed. Straight titanium abutment is considered a common abutment for a large variety of different procedures. DSI straight abutments are made of the highest quality of titanium at Grade 5, in order to provide the best results and allow biological compatibility. DSI titanium straight abutments make a perfect marginal seal and a solid abutment to implant connection.

Inquire Now

DSI straight abutments come in a variety of different platforms, shapes, heights, and forms. It allows anyone to find the right type of abutment for each individual case. The straight abutment is very stable and gives a great trauma reduction during the insertion and removal of the final restoration.

Product Details

Unlike traditional prosthetics, concave abutments have been specially crafted with a particular shape that grants them remarkable aesthetic results. This concave shape allows for an optimal emergence profile, which in turn creates a thick layer of mucosal tissue around its transgingival connection and substantially reduces metal visibility. Moreover, these abutments can be replaced without any harm to newly developed tissues, thereby reducing trauma and accelerating healing times.

DSI straight abutments are great for aesthetics, especially the shoulder and the anatomic abutments. Both these abutments have a unique collar that accelerates the healing process and protects the implant crestal zone. An anatomic and shoulder straight abutments come in an assortment of collar heights to adapt more efficiently to the different gingiva depths in any given restoration case.

Torque Recommendation:
Hand-tighten using a 1.25 mm hex. driver or a motor mount with a force of 25 Ncm.

*Narrow* - Narrow platform 2.0mm internal hex connection - for narrow implant 3.0mm
*Regular* - Regular platform 2.42mm internal hex connection

Features

• Top quality materials.
• Excellent biocompatibility, no risk of abruption.
• Highly aesthetic, precise, and predictable results.
• Great surgical efficiency.
• Guaranteed stability and durability.
• Precise, non-rotational, functional.
• Simple, fast, and accurate positioning.
• Outstanding stability for the crowns and bridges
• A common abutment for a large variety of different procedures
• Reduced tissue transparency and reduced metal visibility of the abutment above the tissue level.
• Creates an emergence profile by optimal solid connection.
• Accelerates the healing process and reduces trauma.
• Highest-level titanium alloy (Grade 5) for excellent biocompatibility and long-term usage.

SAAC1, SAAC2, SAAC3, SAAC4: Straight concave abutment abutment (external diameter 4.5mm) *Regular*

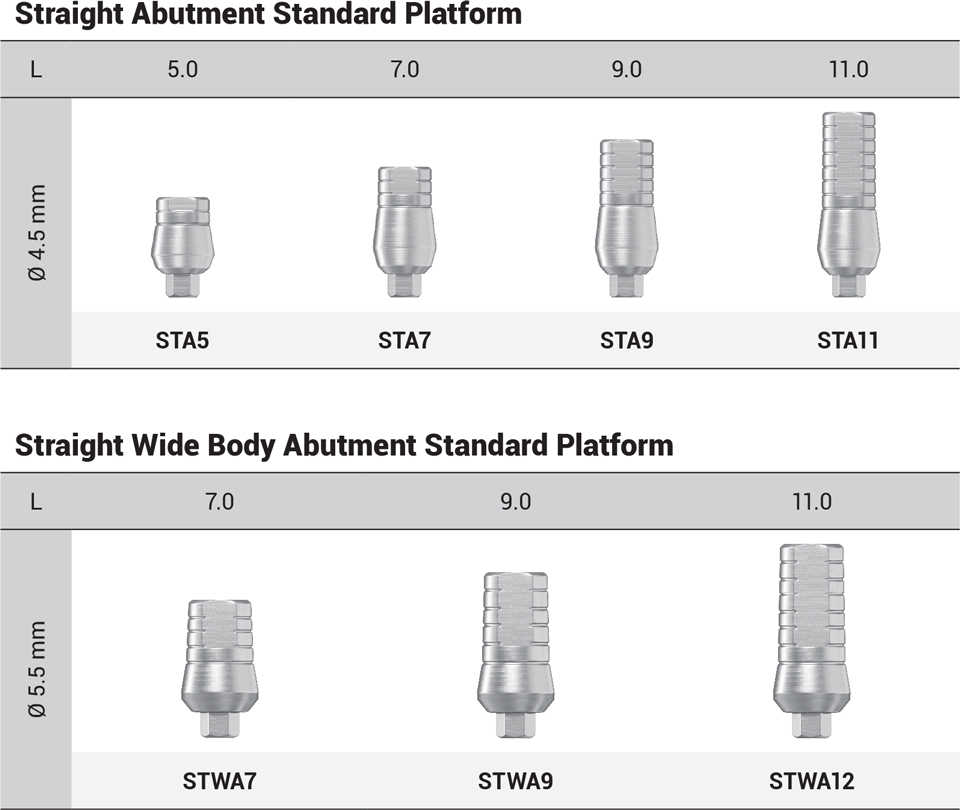

STA5,STA7, STA9, STA11:
Straight abutment (external diameter 4.5mm) *Regular*

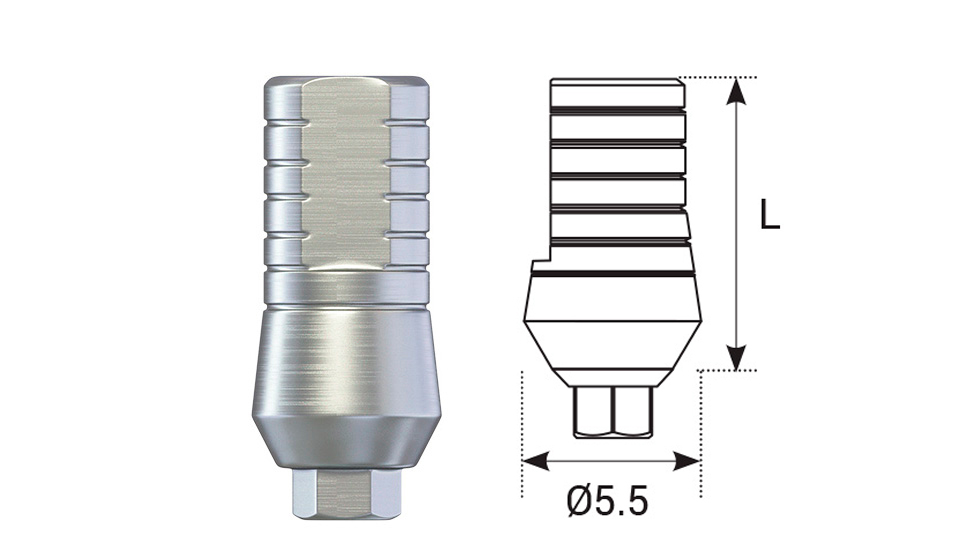

STWA9, STWA11:
Straight abutment wide body (external diameter 5.5mm) *Regular*

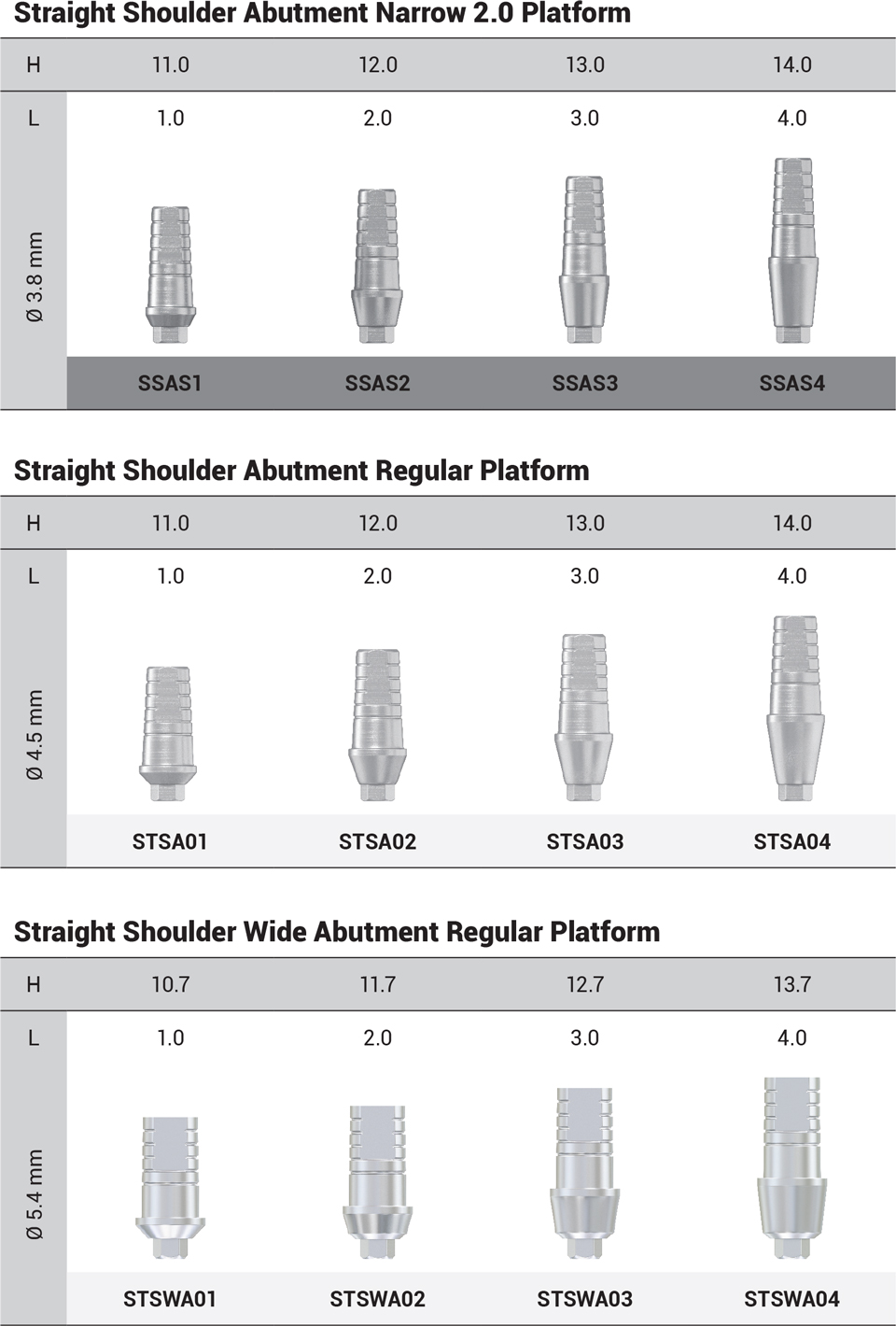

SSAS1, SSAS2, SSAS3, SSAS4:
Straight shoulder abutment *Narrow*
STSA01, STSA02, STSA03, STSA04:
Straight shoulder abutment *Regular*
STA1, STA2, STA3, STA4:
Straight anatomic abutment *Regular*

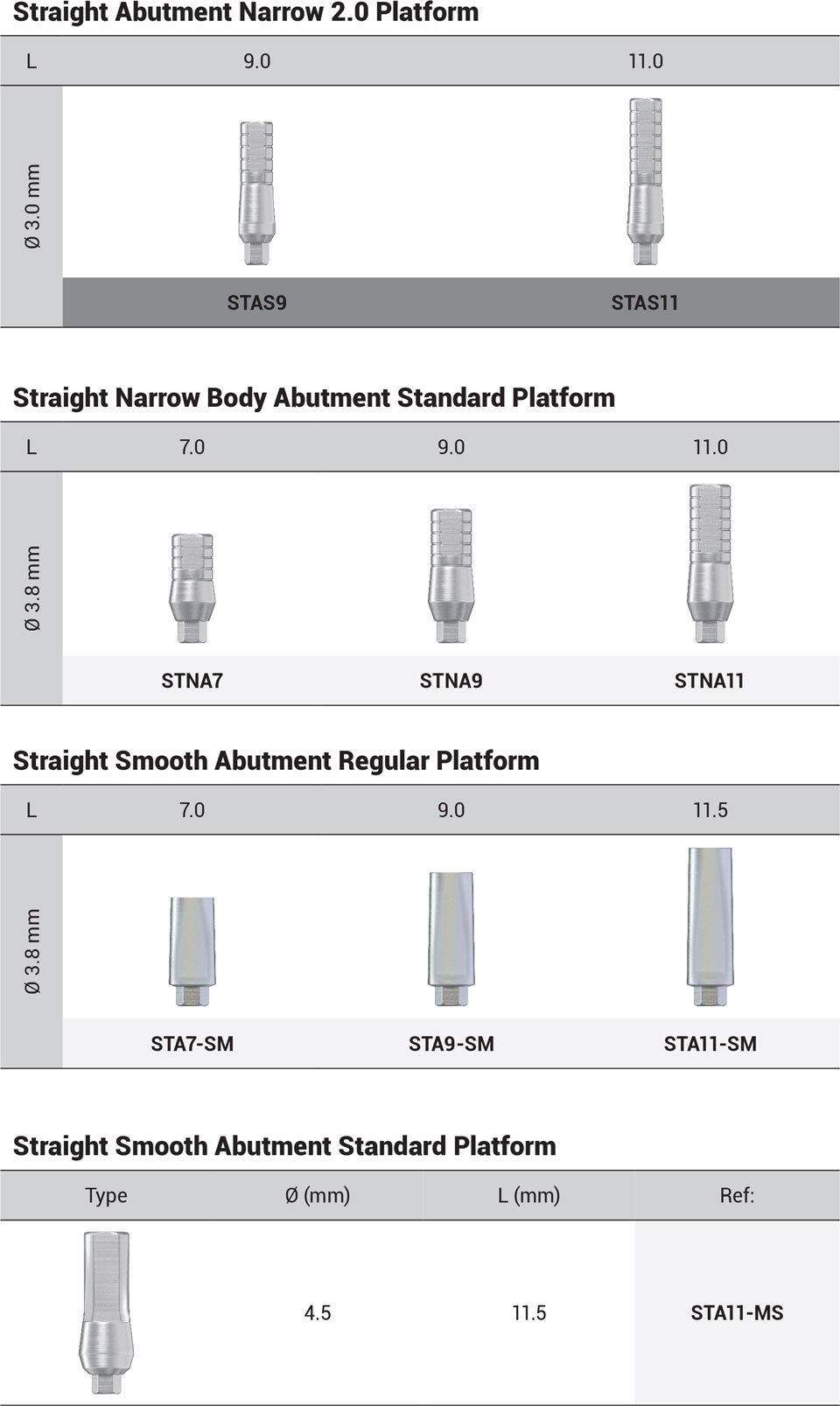

STAS9, STAS11:
Straight abutment *Narrow*
STA9-SM, STA11-SM:
Straight smooth abutment *Regular*
