Professional Surgical Kit

DSI Surgical Kit is the ideal choice for those seeking top-notch performance and value for money. This comprehensive double-decker set contains all that is needed to perform precision implant placement procedures with remarkable accuracy and ease of use. The surgical procedure is guaranteed to succeed due to the high-quality materials and meticulous craftsmanship of each instrument included in the kit. This kit contains the necessary tools needed for a standard surgical procedure. Organized with convenience in mind, the instruments are laid out with ergonomic design and distinctly labeled. Special attention was given to arranging the drills according to a designated drilling protocol for optimal ease of use.

Inquire Now

At DSI, we pride ourselves on producing the highest caliber surgical tools, utilizing only the best materials from around the globe. Our instruments are renowned for their robust construction and longevity. Each and every device is crafted using premium-grade stainless steel, allowing them to withstand sterilization in an autoclave - even down to the polymeric box.

Product Details

To ensure the highest quality of every instrument included in the DSI surgical kit, only the finest raw materials are used for production. Only stainless steel of superior hardness, purity and wearability is selected to craft the components with utmost precision and attention to detail. The result is an impressive set that features high sharpness, remarkable durability and unbeatable precision that is compatible with a wide range of internal-hex systems such as Alpha-Bio, A.B., ZIMMER, Adin, Cortex, Implant Direct and MIS.

The main advantage of this kit is the DSI Step&Stop drills. The Step&Stop drills are built with each drill leading the following for fast and accurate drilling. The drill dimension and shape reflect the closest match to the implant geometry. It benefits from a built-in integral stopper, perfect balance, and an optimized cutting edge with a Diamond-like Carbon DLC coating. DSI Step&Stop drills adjust the socket to reduce the pressure on the implant neck and increase the stability in a deeper area of the socket. The drilling protocol is shorter with these drills and allows faster implant installation. With DSI Step&Stop drills the BIC is better along with less trauma and less bone consumption. Such a drilling sequence gives a huge advantage for immediate loading, and excellent biocompatibility, to reach the optimal osseointegration and complete healing process with no abruption. Promotes earlier bone apposition and provides greater stability during the first critical weeks after placement.

The instruments come in a special plastic polymer box with rigid rubber inserts and it is autoclavable at a temperature of 134° C.

Features

• Best price/quality ratio
• Gives the ability to operate with significance, accuracy, and ease of use.
• Allows for performing a broad range of surgical treatments and implant placements.
• Contains all the instruments needed during the standard surgical procedure.
• The instruments are ergonomically designed, organized by their layouts, and clearly labeled.
• Highest quality materials
• Compatible with internal-hex systems, such as Alpha-Bio, A.B, ZIMMER, Adin, Cortex, Implant Direct, MIS, and more.
• Can be sterilized in an autoclave, including the plastic polymer box itself.

SK006: DSI Professional Surgical Kit
TD280L6SC, SD2028L8SC, SD2028L10SC, SD2028L115SC, SD2028L13SC: DLC Step&Stop Drill Ø2.0-2.8mm L (6, 8, 10, 11.5, 13mm)
TD320L6SC, SD2832L8SC, SD2832L10SC, SD2832L115SC, SD2832L13SC: DLC Step&Stop Drill Ø2.8-3.2mm L (6, 8, 10, 11.5, 13mm)
TD365L6SC, SD32365L8SC, SD32365L10SC, SD32365L115SC, SD32365L13SC: DLC Step&Stop Drill Ø3.2-3.65mm L (6, 8, 10, 11.5, 13mm)
TD400L6SC, SD36540L8SC, SD36540L10SC, SD36540L115SC, SD36540L13SC: DLC Step&Stop Drill Ø3.65-4.0mm L (6, 8, 10, 11.5, 13mm)
TD450L6SC, SD4045L8SC, SD4045L10SC, SD4045L115SC, SD4045L13SC: DLC Step&Stop Drill Ø4.0-4.5mm L (6, 8, 10, 11.5, 13mm)
LD150: lance drill Ø1.5mm
PD190: pilot drill Ø1.9mm
PD200, TD280, TD320, TD365, TD400, TD450, TD520: Cylindrical drills Ø 2.0, 2.8, 3.2, 3.65, 4.0 4.5 and 5.2mm
TDE: drill extender
CD375, CD500: Countersink drills Ø3.75-4.2mm, Ø5.0-6.0mm
LD1520: lindemann drill Ø1.5-2.0mm
SPP100, SPP160: Jag parallel guide pins - L (10,16mm)
RB38: round bur

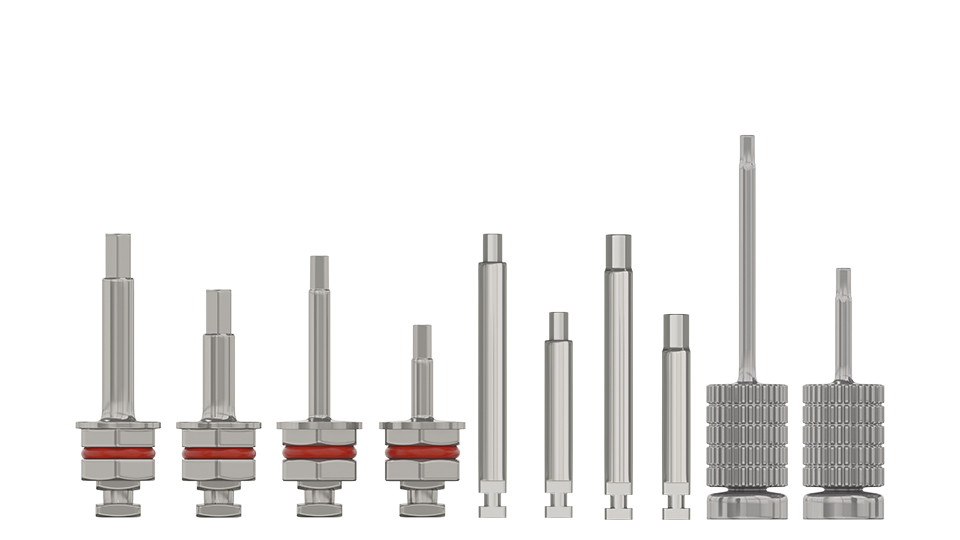

RDS2015: ratchet driver Ø2.0mm for narrow implant Ø3.0mm
MM2028: motor mount driver Ø2.0mm for narrow implant Ø3.0mm
RDK24100, RDK24150: ratchet driver Ø2.42mm, L (10, 15mm) for implants
MM24220, MM24028: motor mount hex driver Ø2.42mm, L(20, 28mm) for implants
RDK125070, RDK125150: ratchet driver Ø1.25mm, L (7, 15mm) for abutments
MM12520, MM12528: motor mount driver Ø1.25mm L (20, 28mm) for abutments
HDK125070, HDK125150: hand abutment driver Ø1.25mm L (7, 15mm)
1000201: torque ratchet 10-35Ncm hexagon head Ø6.35mm
DPKOP: depth gauge measuring tool
PAL94150: removable stainless steel surgical tray
