DSI GBR Comfix Premium Kit is a full and complete GBR solution including all that you will need for a GBR procedure. It is a perfect answer for fixating membranes and dressings of all kinds, soft, collagen membranes, PTFE and titanium reinforced and mesh titanium plates. This kit contains different tacks and screws for membrane fixation. The screws allow easy and fast fixation of the membrane in all kinds of cases, even in the most difficult and demanding with limited space and access. The screws can stabilize the membrane through the healing process without interference. The tacks could be used for collagen membranes, PTFE membranes, and even for titanium mesh plates in rare cases. The main advantage of the tacks is their ability to fixate the membrane without preliminarily drilling through the bone. The tacks can be fixated right away and hold the membrane as long as the healing process takes place.
DSI GBR tack kit includes titanium tacks and titanium membranes. The tacks allow easy and fast fixation of the membrane. The tacks and the membranes are made of the highest quality titanium alloy. The tacks can stabilize the membrane through the healing process without interference. Although the membrane is made of titanium it can be cut and shaped with convenience and ease.
DSI GBR Comfix Premium Kit includes screws, tacks, and membranes which are all made of the highest-quality titanium alloy. The titanium membrane can be shaped and cut as you see fit. This kit includes drills and drivers that will ease the manipulation of screws and tacks during surgical procedures. The instruments provided in the kit allow you to work on more challenging cases, expanding the level of care for your patients. All the instruments are made of the highest quality stainless steel. Everything in the DSI GBR Comfix Premium Kit can be sterilized in an autoclave including the box.
SDS-140-060, SDS-140-080, SDS-140-100: screws Ø1.4mm L (6.0, 8.0, 10.0mm)
SDS-160-060, SDS-160-080, SDS-160-100: screws Ø1.6mm L (6.0, 8.0, 10.0mm)
SDB-140-035: purple tack Ø2.5/0.85, L (3.5mm)
SDB-140-050: blue tack Ø2.5/0.85, L (5.0mm)
DH-01: driver handle
TA-01: tack applicator
TH-01: turning handle

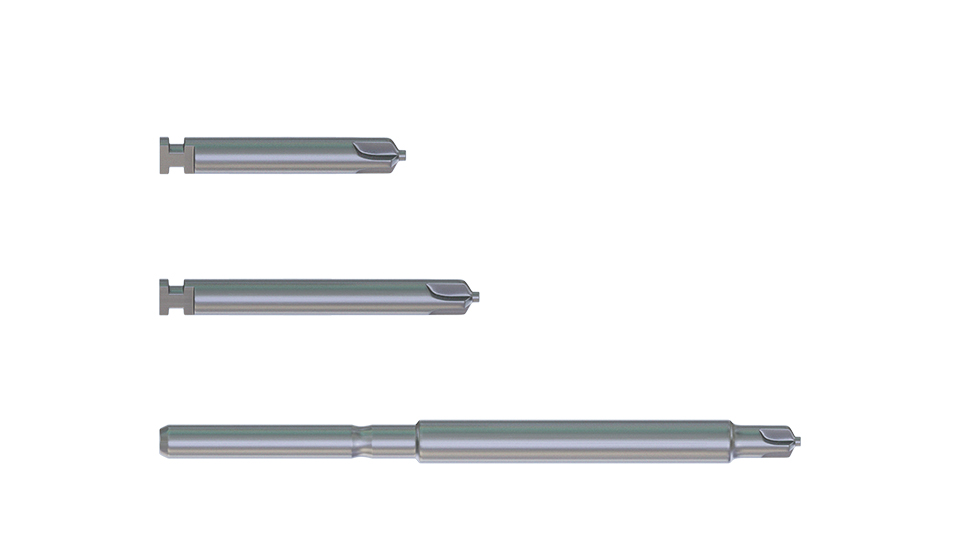

SD-PD12, SD-PD14, SD-PD20: GBR pilot drill Ø1.2, 1.4, 2.0mm
TR-01, TR-02, TR-03: drivers L ( 20, 26, 52mm)
NLBC-50: NLBC drill
NLBC-ST5: NLBC stopper
BT-03, BT05: bone tack case (red and blue) for 20 tacks

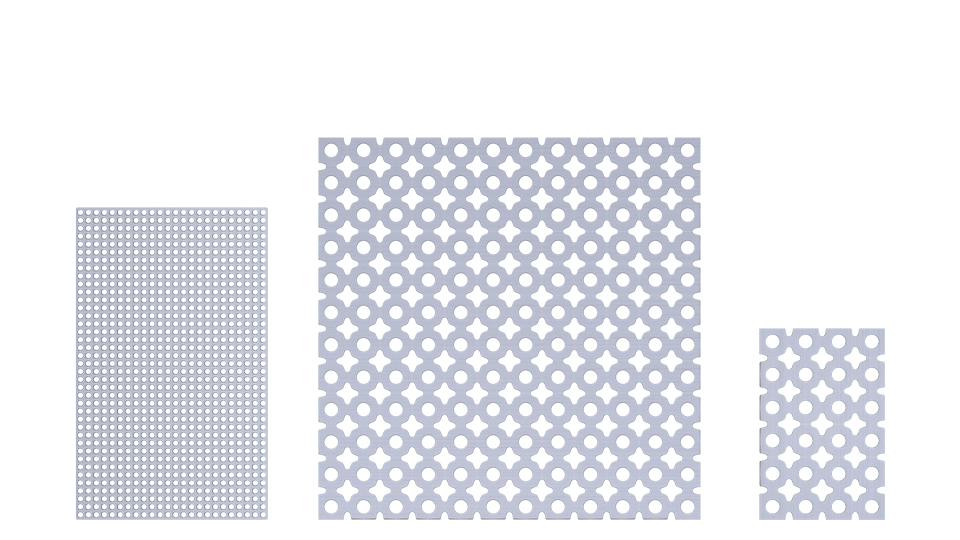

SPD-T36-022: titanium membrane (pores) Ø0.6mm, size 36.0x22.0mm
SDP-S22-015, SDP-S44-044: titanium membrane (pores) Ø1.4mm, size 22.0x15.0mm, 44.0x44.0mm
All the instruments including the box are autoclavable at a temperature of 134° C.
• Easy to apply on a site.
• Membranes can be contoured and cut, to perfectly adapt to the area.
• Secure positioning of the membrane is stabilized using tacks and screws.
• The micro-perforated structure enables the body fluids to enter, ensuring maintenance over time between clot and flap.
• Exactly define the area that needs to be regenerated and serve for containment of graft materials.
• The membrane is non-absorbable and can be left on the site even for extended periods (generally 6-8 months).
• No tissue reaction no risk of abruption
• Can be easily removed after the healing period is done.
