Total Sinus Kit

The DSI Total Sinus Kit has been designed to provide the best possible results for sinus lateral and crestal approaches. Utilizing this kit closes the gap established between individual techniques, providing you with the assurance of a successful outcome. This sinus-lifting toolkit is now an essential component in these types of procedures. The DSI Total Sinus Kit is an essential tool for performing one of the most challenging procedures in dentistry. Holding a series of lateral and crestal reamers, it is specifically designed to protect the sinus membrane while still ensuring optimal performance. And the DSI Total Sinus Kit's cost-effectiveness makes it even more attractive for surgeons.

Inquire Now

The Total Sinus Kit from DSI is created to provide excellent results without causing discomfort or hindering the recovery process. Every tool in the kit has been designed with safety and maximum protection of the sinus membrane in mind, ensuring no damage occurs during the sinus lifting procedure.

Product Details

The kit includes different curettes for convenient and easy membrane lifting when working on a lateral window for a sinus membrane approach. DSI Total Sinus Kit also has a set of special stoppers for both crestal and lateral approaches which gives you even more precision, stability, and predictable results every time. No harm to the patient, no more risks, no more long healing processes, and more inconvenient working and time-consuming procedures.

DSI Total Sinus Kit includes unique reamers that are created for a safe crestal approach without the risk of penetrating the inner membrane, and the lateral approach drills will not over-drill or overheat in the process. After the crestal drills have done their job you can lift the membrane with the aqua tip. Such an approach is considered the most harmless for the patient.

The instruments come in a special plastic polymer box with rigid rubber inserts and it is autoclavable at a temperature of 134° C.


• Minimally invasive for both lateral and crestal approaches.
• Precise and predictable results with minimal effort.
• Compact and complete, with no need for extra tools or units.
• Easy and intuitive to use.
• Safe for the patient, will not damage the membrane and improve the healing process.
• Reducing overall chair time thanks to the double approach.
• Made from the highest quality materials.
• Completely autoclavable including the box that has been made using the highest quality plastic polymer.

DSI-KINUS: Full kit
CR28, CR33, CR38:
crestal reamer Ø2.8, 3.3, 3.8mm
GD20: guide drill Ø2.0mm
LD65: lateral drill Ø6.5mm
SC2550: side cutter Ø2.4mm

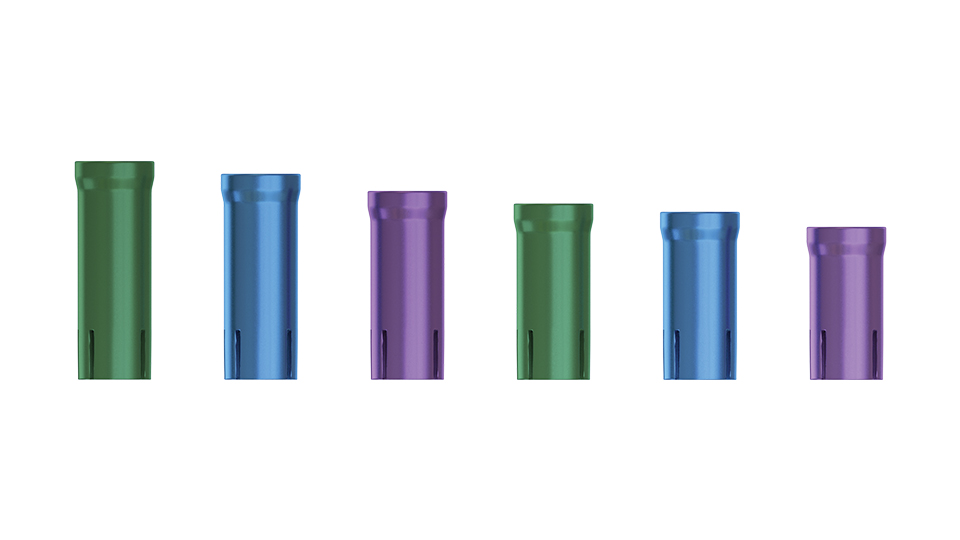

STD02, STD03, STD04, STD05, STD06, STD07: stopper L (2, 3, 4, 5, 6, 7mm)
WD65-10, WD65-20, WD65-30: window drill Ø1.0, 2.0, 3.0mm
HNCR-1: sinus curette L 170mm
HNCR-2: sinus curette L 160mm
HNCR-3: sinus curette L 155mm
HNCR-4: sinus curette L 160mm
DG0246: bone condenser / depth gauge
BCCAS: bone carrier (crestal approach)
BC0511: bone carrier (lateral approach)
AT3050: aqua tip
STB: silicone tube
