Step & Stop Drills

TD280L6SC

DSI Step&Stop drills are safe, durable, and consistent. They are deemed to be the best choice for safe and reliable drilling sequences. DSI Step&Stop drills maintain quality performance, incredible accuracy, lower heat generation, and almost zero vibration during the procedure. They are manufactured specifically for precise implantation. They are especially suited for sinus lifting procedures thanks to the special stoppers that make them very safe. DSI Step&Stop drills are created with a special stopper that does not let the drill go beyond the chosen depth. It reduces trauma to the patient, which reduces the time of the healing process and gives better final results. The drilling process becomes simpler and easier and most importantly - much more accurate and safe.

Inquire Now

The Step&Stop drills are built in a special way with each drill leading the following drill for fast and accurate drilling. The drill dimension and shape reflect the closest match to the implant geometry. It benefits from a built-in integral stopper, perfect balance, and an optimized cutting edge with a Diamond-like Carbon DLC coating. DSI Step&Stop drills adjust the socket to reduce the pressure on the implant neck and increase the stability in a deeper area of the socket. The drilling protocol is shorter with these drills and allows faster implant installation.

Product Details

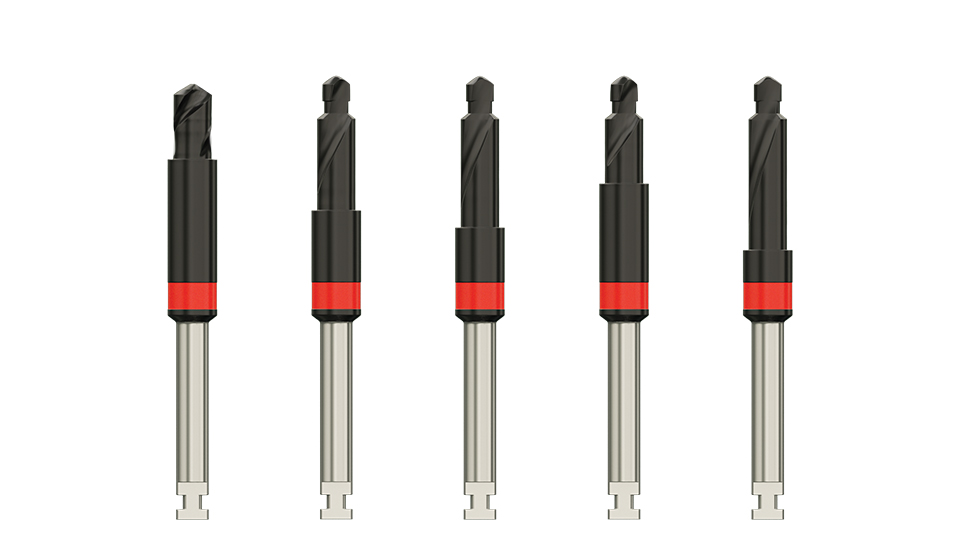

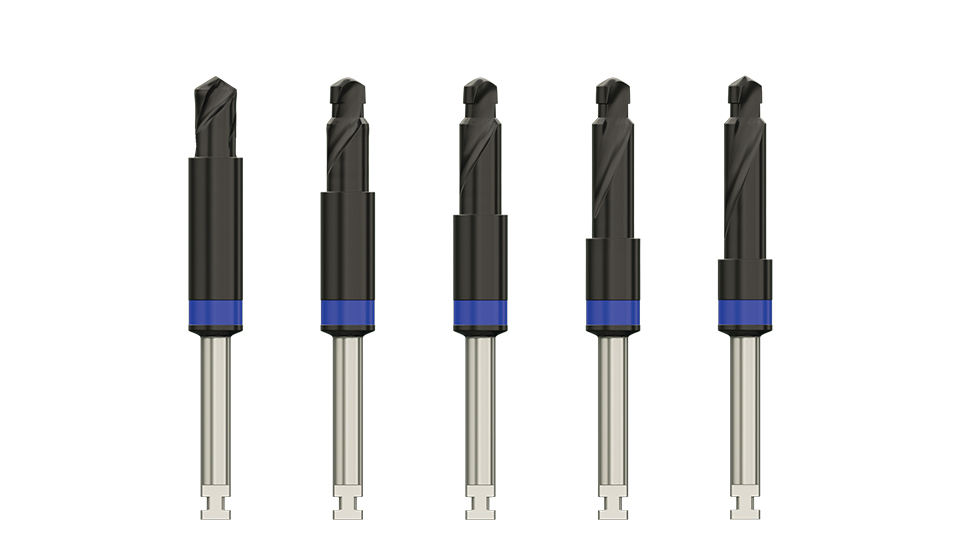

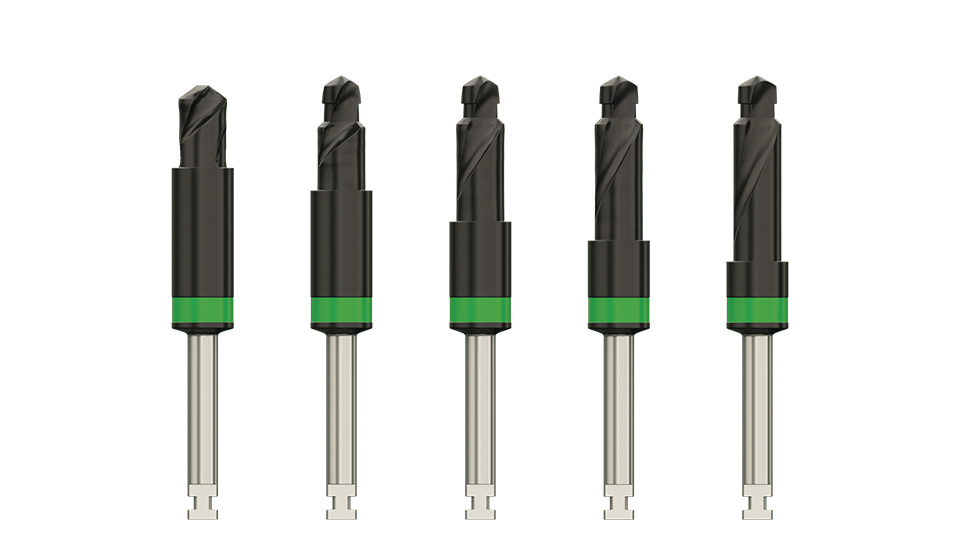

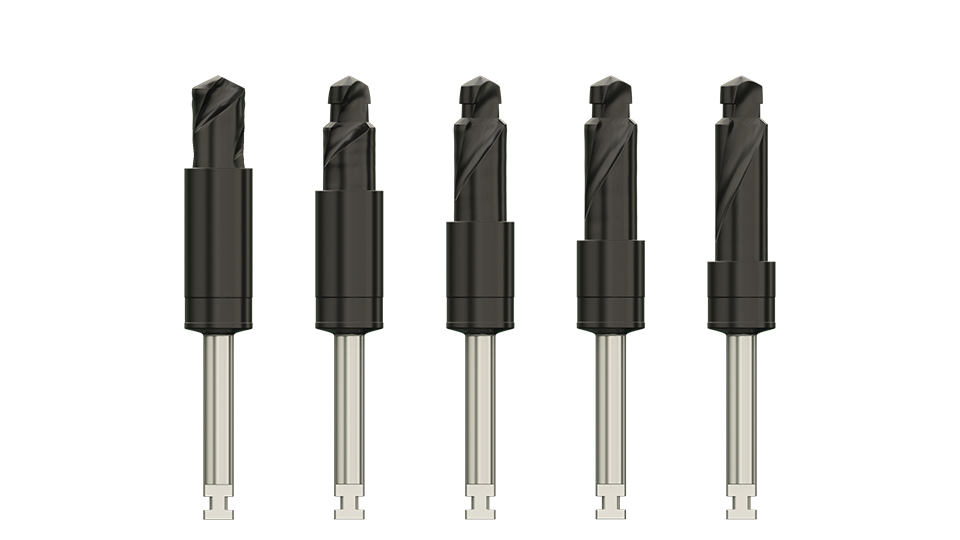

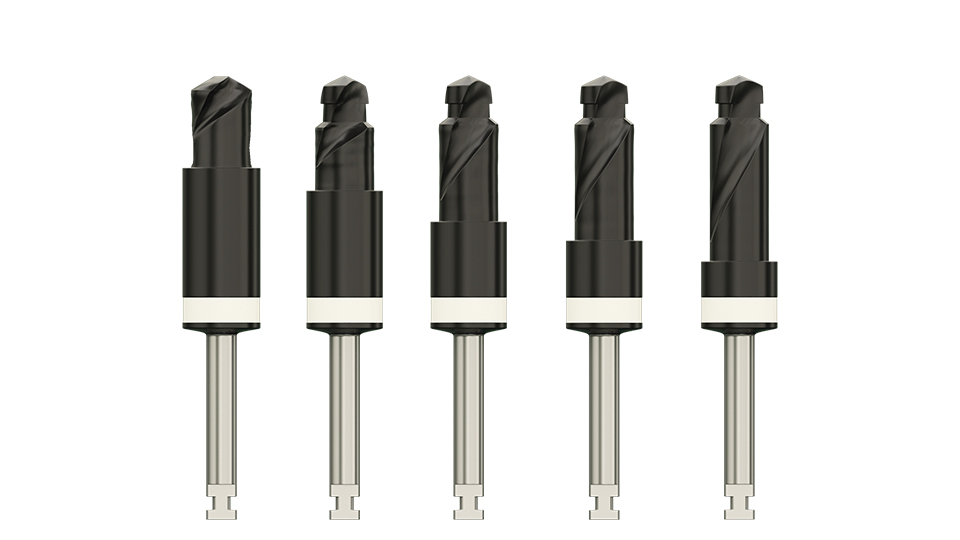

DSI DLC Step&Stop drills:

TD280L6SC, SD2028L8SC, SD2028L10SC, SD2028L115SC, SD2028L13SC: DLC Step&Stop Drill Ø2.0-2.8mm L (6, 8, 10, 11.5, 13mm)
TD320L6SC, SD2832L8SC, SD2832L10SC, SD2832L115SC, SD2832L13SC:
DLC Step&Stop Drill Ø2.8-3.2mm L (6, 8, 10, 11.5, 13mm)
TD365L6SC, SD32365L8SC, SD32365L10SC, SD32365L115SC, SD32365L13SC:
DLC Step&Stop Drill Ø3.2-3.65mm L (6, 8, 10, 11.5, 13mm)
TD400L6SC, SD36540L8SC, SD36540L10SC, SD36540L115SC, SD36540L13SC:
DLC Step&Stop Drill Ø3.65-4.0mm L (6, 8, 10, 11.5, 13mm)
TD450L6SC, SD4045L8SC, SD4045L10SC, SD4045L115SC, SD4045L13SC:
DLC Step&Stop Drill Ø4.0-4.5mm L (6, 8, 10, 11.5, 13mm)

All the drills are made of stainles steel and are autoclavable at a temperature of 134° C. Recommended use cycles for the Step&Stop drills are 50 cycles.

DSI The Step&Stop are 100% compatible with any DSI spiral implant and most of the platforms available on the market such as Alpha-Bio, A.B, ZIMMER, Adin, Cortex, Implant Direct, MIS, and more.

Features


• Lower bone heating - and as the result- no bone necrosis peril
• Compatible with internal-hex systems, such as Alpha-Bio, A.B, ZIMMER, Adin, Cortex, Implant Direct, MIS, and more
• Can be sterilized in an autoclave
• Most useful and affordable
• Made for maximum accuracy, extremely high reliability, and excellent working capacity
• Built with a special stopper
• Maintaining accuracy and reducing trauma to the patient
• Reaching the exact depth without any risk of going further
• DLC dark grey coating reduces the drill's vibration and the cutting temperature
• Adapted specifically to the anatomical shape of the implant
• Less heat generation, fewer vibrations, longer lifespan, and outstanding stability.

More information

IFU Instruction for UseClinical CasesProduct Brochure
